MG-x-T2x

Machine handles with operating and reporting device

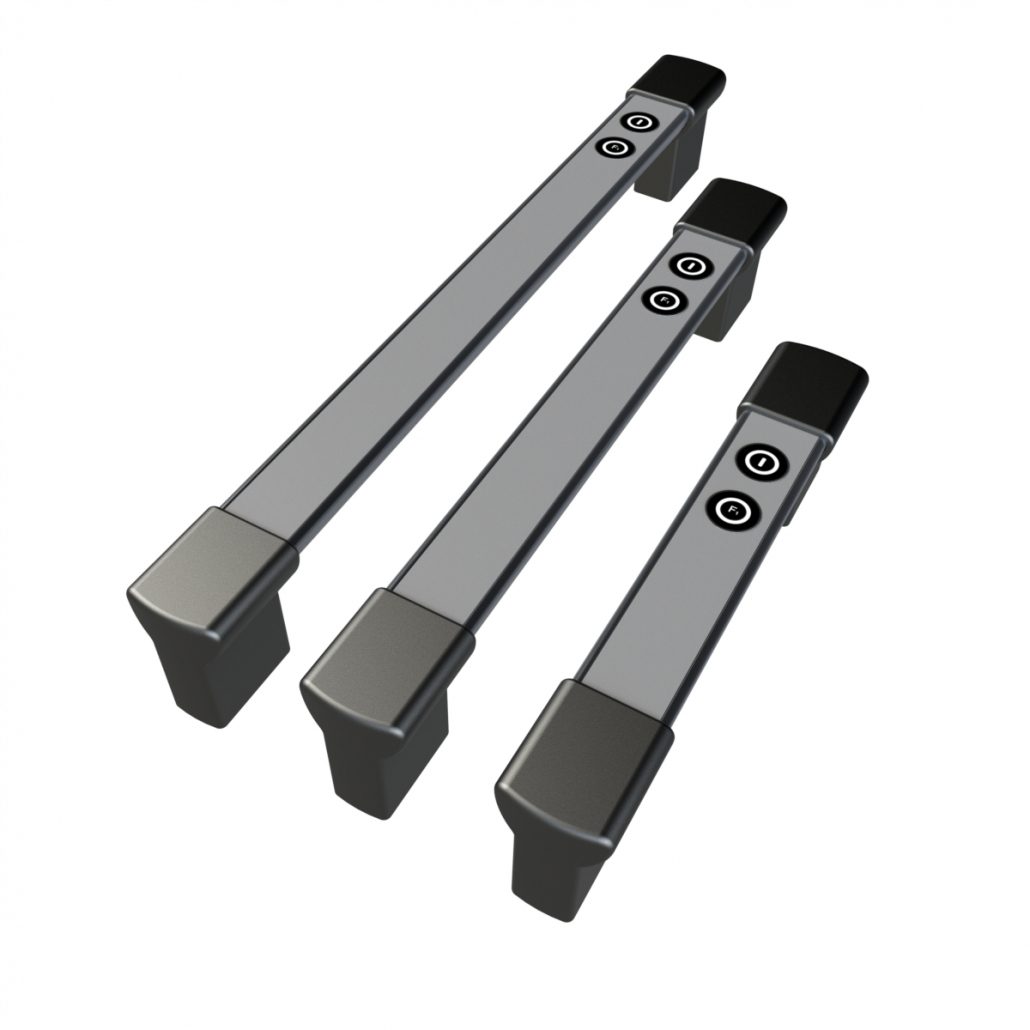

The MG-x-T2x machine handles are made of natural-colored anodized aluminum and the handle legs are made of black plastic. The profile was specially designed to integrate additional functions in the installation of electronic assemblies.

The MG-x-T2x series is equipped with two integrated electronic buttons with short-circuit-proof output drivers and a green feedback LED. Contactors can be operated with the integrated semiconductor power drivers without a coupling relay. The buttons are debounced via software and have a minimum duty cycle of 200ms. The connection to the supply voltage (24VDC) is made via a 5m cable with an M12 connector or with an open end.

The machine handles are available in different lengths and switching functions (switches or buttons).

Product Line

Variants of the product series


Item Num. Type Picture Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
11600 M-1-T2F M12
24V DC 230 x 40 x 63,5 [mm] M12 Connector upon request
11602 MG-1-T2L M12
24V DC 230 x 40 x 63,5 [mm] M12 Connector upon request
11601 MG-1-T2F LC
24V DC 230 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
11603 MG-1-T2L LC
24V DC 230 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
11604 MG-2-T2F M12
24V DC 330 x 40 x 63,5 [mm] M12 Connector upon request
11606 MG-2-T2L M12
24V DC 330 x 40 x 63,5 [mm] M12 Connector upon request
11605 MG-2-T2F LC
24V DC 330 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
11607 MG-2-T2L LC
24V DC 330 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
11608 MG-3-T2F M12
24V DC 430 x 40 x 63,5 [mm] M12 Connector upon request
11610 MG-3-T2L M12
24V DC 430 x 40 x 63,5 [mm] M12 Connector upon request
11609 MG-3-T2F LC
24V DC 430 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
11611 MG-3-T2L LC
24V DC 430 x 40 x 63,5 [mm] Cable 5m PVC/PVC upon request
