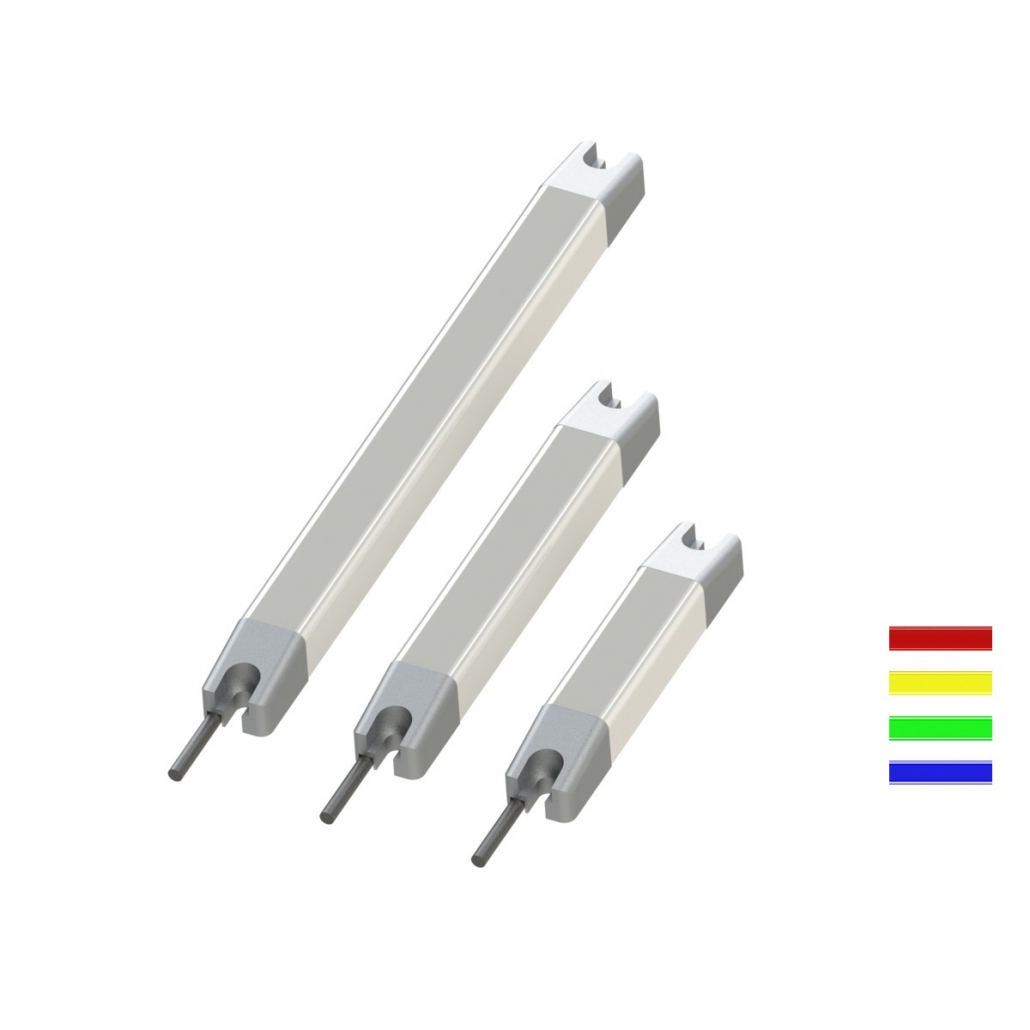

SL-x-TRIO
LED signal lights, red/green/yellow/blue, impact-resistant, splinter-free polycarbonate diffuser, full-surface and diffuse signal surface, easy assembly and installation in the visible area, robust aluminum housing.The signal light series SL-x-TRIO is designed for front installation using two M6 hexagon socket head cap screws (DIN ISO 4762). These signal lights can thus be easily integrated into profile systems with T-nuts.
The stable aluminium housing and the shock-resistant polycarbonate optics can withstand tough industrial environments. The polycarbonate diffuser, which was specially developed for LED applications, ensures a homogeneous light-emitting surface with high efficiency.
The electrical installation is easily realised with a power supply of 24 V DC via a 4-pole PVC cable of 5 m in length. The power supply range is 21- 27 V DC. The
Product Line
Pricelist
Variations of the product series SL-x-TRIO
| Item Num. | Type | Picture | Tension | Dimensions | Connection | Data sheet | 3D Data | Inquiry |
| 11336 | SL-05-TRIO LC GTIN / EAN: 4262388142772 |
|
24V DC | 130 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 11335 | SL-05-TRIO M12 GTIN / EAN: 4262388142765 |
|
24V DC | 130 x 24 x 20 [mm] | M12 Connector |
|
|
|
| 10742 | SL-1-TRIO LC GTIN / EAN: 4262388142512 |
|
24V DC | 180 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 10911 | SL-1-TRIO M12 GTIN / EAN: 4262388142574 |
|
24V DC | 180 x 24 x 20 [mm] | M12 Connector |
|
|
|
| 10743 | SL-2-TRIO LC GTIN / EAN: 4262388142529 |
|
24V DC | 280 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 11005 | SL-2-TRIO M12 GTIN / EAN: 4262388142581 |
|
24V DC | 280 x 24 x 20 [mm] | M12 Connector |
|
|
|
| 10744 | SL-3-TRIO GTIN / EAN: 4262388142536 |
|
24V DC | 380 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 11006 | SL-3-TRIO M12 |
|
24V DC | 380 x 24 x 20 [mm] | M12 Connector |
|
|
|
| 10745 | SL-4-TRIO GTIN / EAN: 4262388142598 |
|
24V DC | 480 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 11007 | SL-4-TRIO M12 GTIN / EAN: 4262388142604 |
|
24V DC | 480 x 24 x 20 [mm] | M12 Connector |
|
|
|
| 10746 | SL-5-TRIO GTIN / EAN: 4262388142550 |
|
24V DC | 580 x 24 x 20 [mm] | Cable 5m PVC/PVC |
|
|
|
| 11008 | SL-5-TRIO M12 GTIN / EAN: 4262388142611 |
|
24V DC | 580 x 24 x 20 [mm] | M12 Connector |
|
|
|
