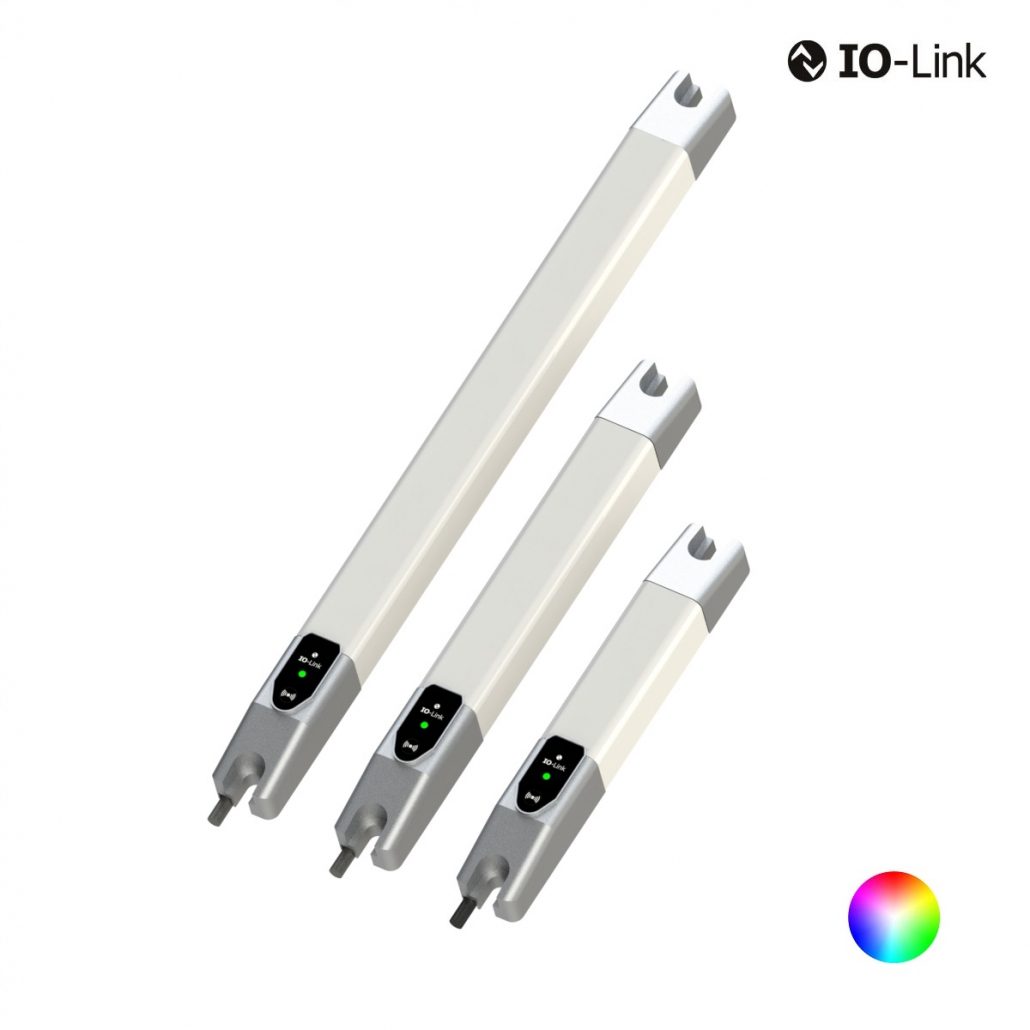

SL-x-TRIO IOLINK

LED signal light flat, robust, with IO-Link interface

The SL-x-TRIO IOLINK signal lights series is designed for frontal mounting with two M6 hexagon socket head cap screws (DIN ISO 4762). As a result, these signal lights can be integrated with ease in profile systems with a T-slot.

The sturdy aluminium housing and shockresistant polycarbonate optic can withstand severe industrial conditions. Specially developed for LED applications, the polycarbonate diffusor ensures a homogeneous lightemitting surface and a high degree
of efficiency.

With an IO link interface, these intelligent signal lights ensure that you know how your transducer is functioning at all times. Conventional manual function tests (lamp tests) are dispensed with.

In addition, you can parameterise the colours and signal functions and the frequency and tone intervals of the integrated piezo
buzzer at any time for these signal lights via 0the IO link interface

Product Line

Variants of the product series


Item Num. Type Picture Tension Dimensions Connection Data sheet CE Compliant 3D Data IODD-Files Price (netto) Inquiry
11359 SL-05-TRIO IOLINK M12
24V DC 160 x 24 x 20 M12 Connector upon request
11358 SL-05-TRIO IOLINK LC
24V DC 160 x 24 x 20 Cable 3m PVC/PVC upon request
11352 SL-1-TRIO IOLINK M12
24V DC 210 x 24 x 20 [mm] M12 Connector 128 EUR
11354 SL-1-TRIO IOLINK LC
24V DC 210 x 24 x 20 [mm] Cable 3m PVC/PVC 128 EUR
11353 SL-2-TRIO IOLINK M12
24V DC 316 x 24 x 20 [mm] M12 Connector 142 EUR
11355 SL-2-TRIO IOLINK LC
24V DC 316 x 24 x 20 [mm] Cable 3m PVC/PVC 142 EUR
