AL-x-60R

Universal, robust rotating industrial light, IP67

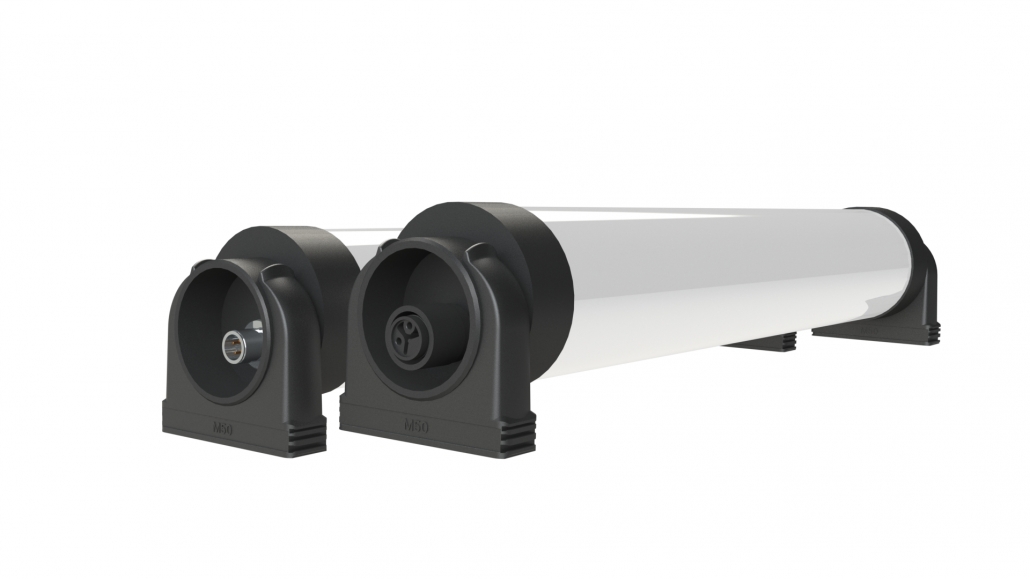

The Workplace and workshop lights of the series AL-x-60-R are universal tube lights made of shock-resistant and shatterproof polycarbonate. Due to the high degree of diffusion the light has a high glare suppression and a homogenous light-emitting surface. Since the lights can be rotated by 360 degrees it is quite easy to be positioned.

These tube lights are available whether with a supply voltage of 24 V DC or as a line voltage supply with 230 V AC. The connection is being realized via a M12 sensor connector plug or a    connector plug RST16I2. The types of AL-x-60-RD have a feed-through wiring with two RST16I2    connector plugs (plug / jack) for chaining the lights.

There are 5 power

Product Line

Variants of the product series


Item Num. Type Picture Power Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
11120 AL-9-60-R
GTIN / EAN: 4262388141577
10W 24V DC 400 x 70,3 x 74,8 [mm] M12 Connector 110,00 EUR
11121 AL-10-60-R
GTIN / EAN: 4262388141584
12W 230V AC 400 x 70,3 x 74,8 [mm] RST16i3 Stecker 139,00 EUR
11122 AL-10-60-RD
GTIN / EAN: 4262388141591
12W 230V AC 400 x 70,3 x 74,8 [mm] RST16i3 Stecker/Buchse 169,00 EUR
11123 AL-18-60-R
GTIN / EAN: 4262388141607
20W 24V DC 700 x 70,3 x 74,8 [mm] M12 Connector 155,00 EUR
11124 AL-20-60-R
GTIN / EAN: 4262388141614
22W 230V AC 700 x 70,3 x 74,8 [mm] RST16i3 Connector 195,00 EUR
11125 AL-20-60-RD
GTIN / EAN: 4262388141621
22W 230V AC 700 x 70,3 x 74,8 [mm] RST16i3 plug / socket 215,00 EUR
11126 AL-27-60-R
GTIN / EAN: 4262388141638
30W 24V DC 1000 x 70,3 x 74,8 [mm] M12 Connector 198,00 EUR
11127 AL-30-60-R
GTIN / EAN: 4262388141645
33W 230V AC 1000 x 70,3 x 74,8 [mm] RST16i3 Connector 242,00 EUR
11128 AL-30-60-RD
GTIN / EAN: 4262388141652
33W 230V AC 1000 x 70,3 x 74,8 [mm] RST16i3 plug / socket 265,00 EUR
11129 AL-36-60-R
GTIN / EAN: 4262388141669
38W 24V DC 1300 x 70,3 x 74,8 [mm] M12 Connector 243,00 EUR
11130 AL-40-60-R
GTIN / EAN: 4262388141676
44W 230V AC 1300 x 70,3 x 74,8 [mm] RST16i3 Connector 288,00 EUR
11131 AL-40-60-RD
GTIN / EAN: 4262388141683
44W 230V AC 1300 x 70,3 x 74,8 [mm] RST16i3 plug / socket 309,00 EUR
11132 AL-45-60-R
GTIN / EAN: 4262388141690
48W 24V DC 1600 x 70,3 x 74,8 [mm] M12 Connector 284,00 EUR
11133 AL-50-60-R
GTIN / EAN: 4262388141706
55W 230V AC 1600 x 70,3 x 74,8 [mm] RST16i3 Connector 335,00 EUR
11134 AL-50-60-RD
GTIN / EAN: 4262388141713
55W 230V AC 1600 x 70,3 x 74,8 [mm] RST16i3 plug / socket 359,00 EUR
