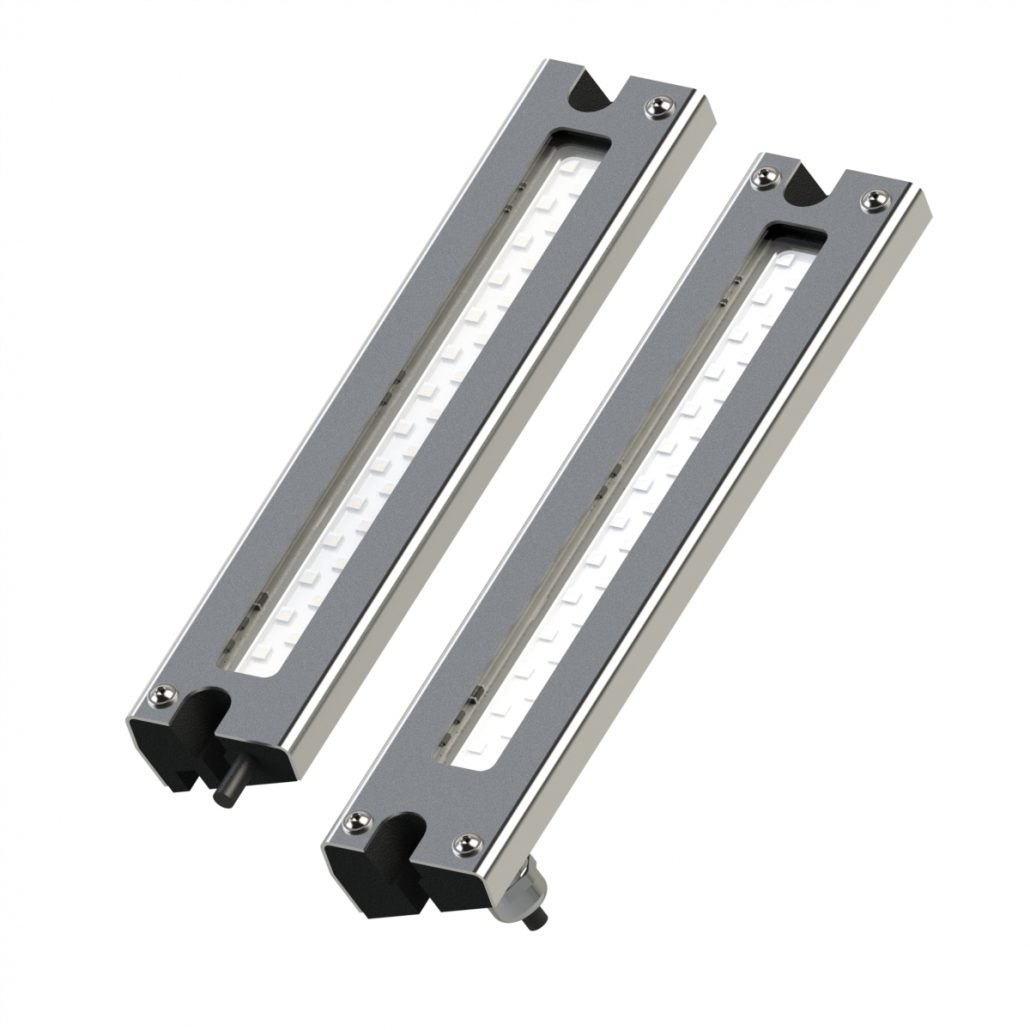

WML-x-20/WML-x-20R

LED machine tool luminaires, IP68 / IP69K, dimming angle 20 °

The machine tool luminaire series WML-x-20 / WML-x-20R allow for compact, very flat dimensions an easy mechanical integration in machines and machine tools without significantly restricting the space available. The robust aluminum housing with stainless steel guard plate
and a thermally toughened glass front panel protects the LED luminaire against numerous chemicals such as alkalis, acids and oils as well as shavings in machine tools. The lights are completely shed.

With the inclined LED strip, a ceiling or wall mounting with integrated dimming 20 ° is possible. The WML-x-20R / WML-x-20R series are available with M12 plug connection or with 5 m open-ended PUR / PVC cable (* LC types).

The WML-x-20R series is equipped with a rear cable outlet. The rear cable outlet in combination protects the cable and the housing construction replaces built-in solutions that require a sheet metal cutout.

Product Line

Variants of the product series


Item Num. Type Picture Power Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
11159 WML-6-20 M12
GTIN / EAN: 4262388141881
6W 24V DC 200 x 42,3 x 23 [mm] M12 Connector 173,40 EUR
11160 WML-6-20 LC
GTIN / EAN: 4262388141898
6W 24V DC 200 x 42,3 x 23 [mm] Kabel 5m PUR/PVC 173,40 EUR
11169 WML-6-20R M12
GTIN / EAN: 4262388141980
6W 24V DC 210 x 42,3 x 23 [mm] M12 Connector 177,60 EUR
11170 WML-6-20R LC
GTIN / EAN: 4262388141997
6W 24V DC 210 x 42,3 x 23 [mm] Cable 5m PUR/PVC 177,60 EUR
11161 WML-12-20 M12
GTIN / EAN: 4262388141904
12W 24V DC 370 x 42,3 x 23 [mm] M12 Connector 239,50 EUR
11162 WML-12-20 LC
GTIN / EAN: 4262388141911
12W 24V DC 370 x 42,3 x 23 [mm] Cable 5m PUR/PVC 239,50 EUR
11171 WML-12-20R M12
GTIN / EAN: 4262388142000
12W 24V DC 380 x 42,3 x 23 [mm] M12 Connector 246,90 EUR
11172 WML-12-20R LC
GTIN / EAN: 4262388142017
12W 24V DC 380 x 42,3 x 23 [mm] Cable 5m PUR/PVC 246,90 EUR
11163 WML-18-20 M12
GTIN / EAN: 4262388141928
18W 24V DC 540 x 42,3 x 23 [mm] M12 Connector 348,80 EUR
11164 WML-18-20 LC
GTIN / EAN: 4262388141935
18W 24V DC 540 x 42,3 x 23 [mm] Cable 5m PUR/PVC 348,80 EUR
11173 WML-18-20R M12
GTIN / EAN: 4262388142024
18W 24V DC 550 x 42,3 x 23 [mm] M12 Connector 361,40 EUR
11174 WML-18-20R LC
GTIN / EAN: 4262388142031
18W 24V DC 550 x 42,3 x 23 [mm] Cable 5m PUR/PVC 361,40 EUR
11165 WML-24-20 M12
GTIN / EAN: 4262388141942
24W 24V DC 540 x 42,3 x 23 [mm] M12 Connector 382,40 EUR
11166 WML-24-20 LC
GTIN / EAN: 4262388141959
24W 24V DC 540 x 42,3 x 23 [mm] Cable 5m PUR/PVC 382,40 EUR
11175 WML-24-20R M12
GTIN / EAN: 4262388142048
24W 24V DC 550 x 42,3 x 23 [mm] M12 Connector 405,60 EUR
11176 WML-24-20R LC
GTIN / EAN: 4262388142055
24W 24V DC 550 x 42,3 x 23 [mm] Cable 5m PUR/PVC 405,60 EUR
11167 WML-36-20 M12
GTIN / EAN: 4262388141966
36W 24V DC 800 x 42,3 x 23 [mm] M12 Connector 453,90 EUR
11168 WML-36-20 LC
GTIN / EAN: 4262388141973
36W 24V DC 800 x 42,3 x 23 [mm] Cable 5m PUR/PVC 453,90 EUR
11177 WML-36-20R M12
GTIN / EAN: 4262388142062
36W 24V DC 810 x 42,3 x 23 [mm] M12 Connector 467,60 EUR
11178 WML-36-20R LC
GTIN / EAN: 4262388142079
36W 24V DC 810 x 42,3 x 23 [mm] Cable 5m PUR/PVC 467,60 EUR
