AL-x-S / AL-x-D

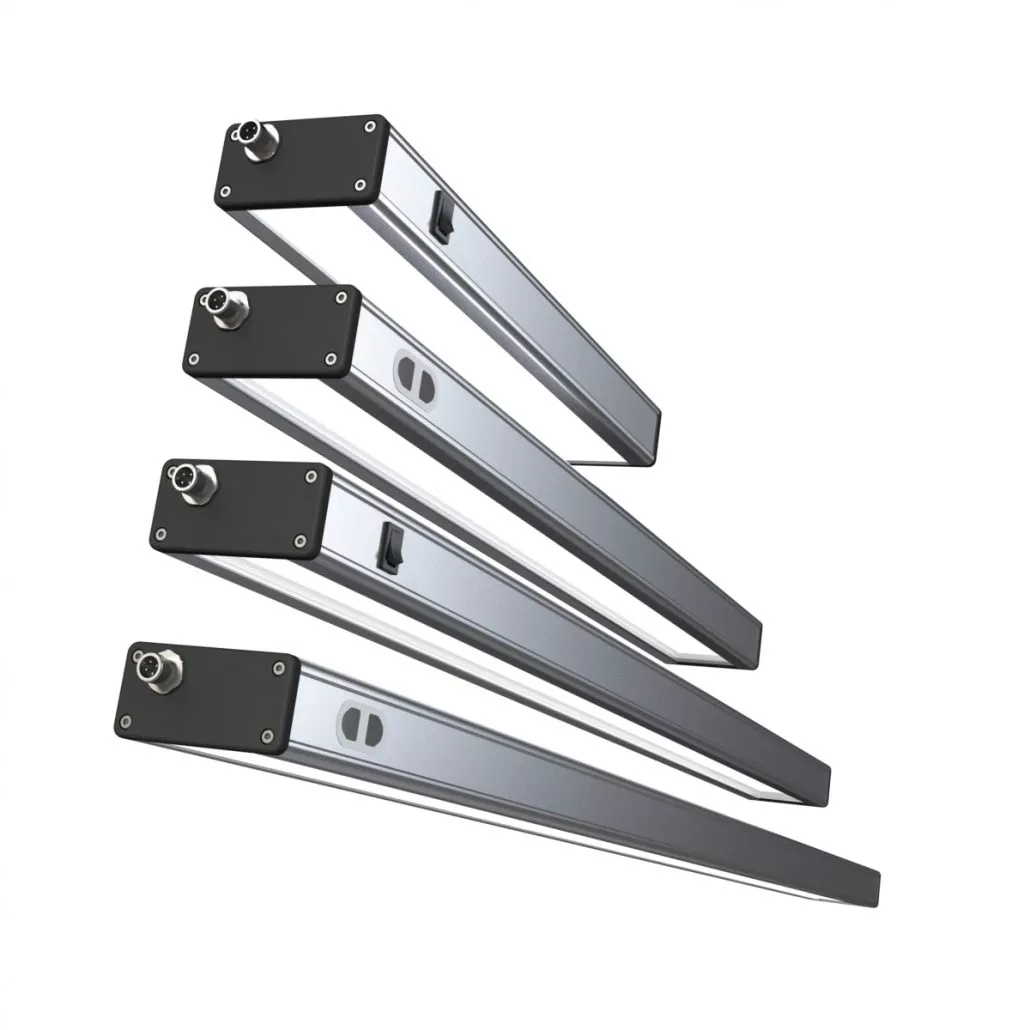

LED workplace lights in system profile housing 80 x 40, full metal housing, fastening via slot nuts slot 8, M12 plug connection, optional integrated dimming, protective extra-low voltage 24V DC.

The workplace lights are suitable for commercial and purpose use at assembly workstations and machines without cooling lubricant use.

With the excellent energy efficiency of latest LEDs and the low energy consumption and low maintenance compared with conventional fluorescent tube systems high cost savings can be reached with this LED light systems.

With flexible mounting options via sliding nuts the LED workplace light is easy to integrate into profile systems, workstations or machines. The integrated dimming module enables optimum adaptation to the required lighting conditions.

Product Line

Variations of the product series AL-x-S / AL-x-D

Item Num.TypePicturePowerTensionDimensionsConnectionData sheet3D DataInquiry
10817AL-24-S
GTIN / EAN: 4262388141454
24W24V DC400 x 80 x 40 [mm]M12 Connector
10822AL-24-D
GTIN / EAN: 4262388141461
24W24V DC400 x 80 x 40 [mm]M12 Connector
10823AL-48-S
GTIN / EAN: 4262388141478
48W24V DC700 x 80 x 40 [mm]M12 Connector
10824AL-48-D
GTIN / EAN: 4262388141485
48W24V DC700 x 80 x 40 [mm]M12 Connector
10825AL-72-S
GTIN / EAN: 4262388141492
72W24V DC1000 x 80 x 40 [mm]M12 Connector
10826AL-72-D
GTIN / EAN: 4262388141508
72W24V DC1000 x 80 x 40 [mm]M12 Connector
10827AL-96-S
GTIN / EAN: 4262388141515
96W24V DC1300 x 80 x 40 [mm]M12 Connector
10828AL-96-D
GTIN / EAN: 4262388141522
96W24V DC1300 x 80 x 40 [mm]M12 Connector
