Functional handles MG-x-Tx IOLINK

Machine handles with operating and reporting device and IO-Link interface

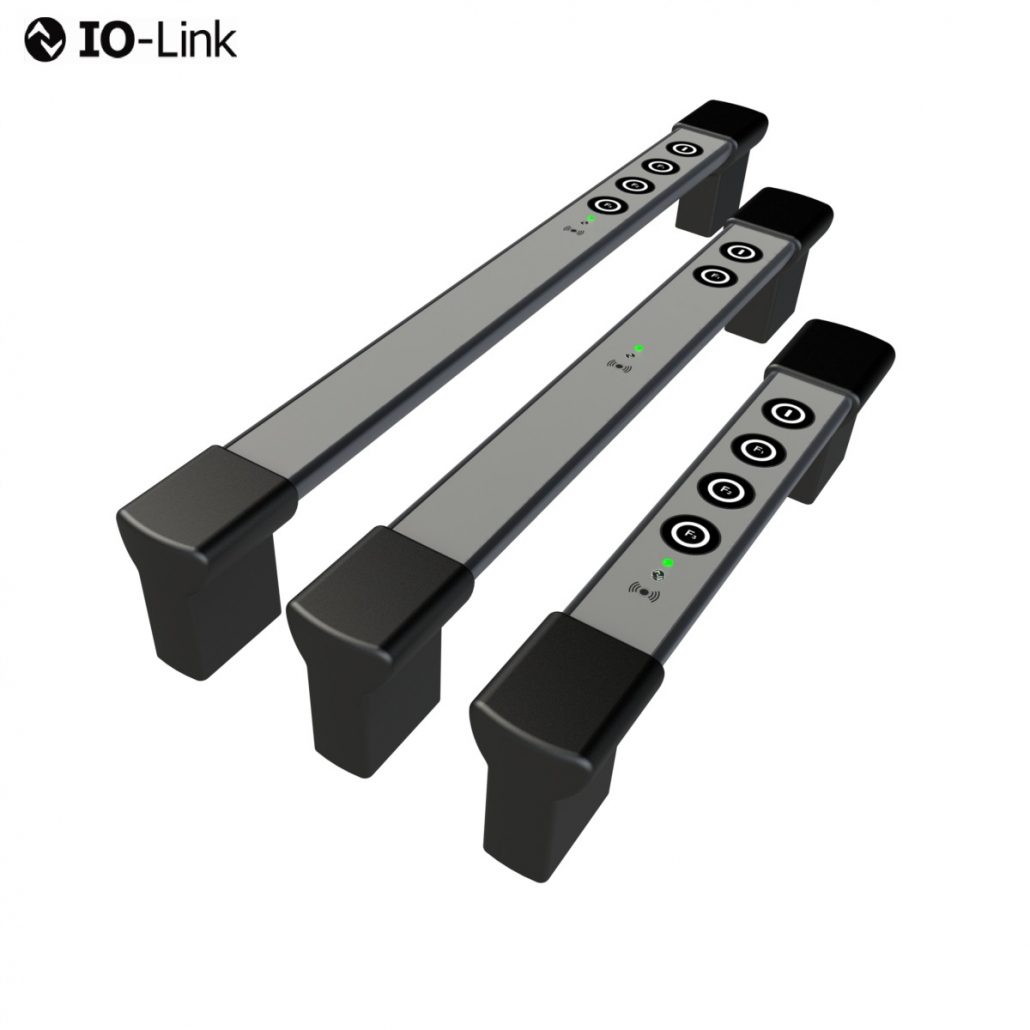

Machine handles of the MG-x-Tx IOLINK series are made of natural-colored anodized aluminum and handle legs are made of black powder-coated aluminum. The profile was specially designed for the installation of electronic assemblies to integrate additional functions.

The feedback LEDs on the keyboard, as well as the frequency and tone intervals of the integrated piezo buzzer, can be parameterized at any time via the IO-Link interface.

The function handles also provide additional self-diagnosis functions. The self-diagnosis includes continuous monitoring of the signal surface LEDs, monitoring of the function of the buzzer, overtemperature and its logging. In the event of an error, an error event is output via IO-Link, which can be taken into account in the higher-level controller. An operating hours counter and error event counter complement the diagnostics, which can be accessed at any time via IO-Link. This enables new, predictive repair and maintenance concepts.

The connection is made on the back of any IO-Link master via a 5m PVC / PVC cable with an open end or an M8 connector.

Product Line

Variations of the product series Functional handles MG-x-Tx IOLINK

Item Num.TypePictureTensionDimensionsConnectionData sheetCE Compliant3D DataIODD-FilesPrice (netto)Inquiry
11641MG-1-T2-IOL LC
GTIN / EAN: 4262388144578
24 VDC270 x 41,5 x 65 [mm]Cable 5m PUR/PVC 358 EUR
11642MG-1-T2-IOL M8
GTIN / EAN: 4262388144431
24V DC270 x 41,5 x 65 [mm]Connector M8 358 EUR
11643MG-1-T4-IOL LC
GTIN / EAN: 4262388140273
24V DC270 x 41,5 x 65 [mm]Cable 5m PUR/PVC 375 EUR
11644MG-1-T4-IOL M8
GTIN / EAN: 4262388140082
24V DC270 x 41,5 x 65 [mm]Connector M8 375 EUR
11645MG-2-T2-IOL LC
GTIN / EAN: 4262388140044
24V DC380 x 41,5 x 65 [mm]Cable 5m PUR/PVC 382 EUR
11646MG-2-T2-IOL M8
GTIN / EAN: 4262388140051
24V DC380 x 41,5 x 65 [mm]Connector M8 382 EUR
11647MG-2-T4-IOL LC
GTIN / EAN: 4262388143977
24V DC380 x 41,5 x 65 [mm]Cable 5m PUR/PVC 405 EUR
11648MG-2-T4-IOL M8
GTIN / EAN: 4262388143922
24V DC380 x 41,5 x 65 [mm]Connector M8 405 EUR
11649MG-3-T2-IOL LC
GTIN / EAN: 4262388143816
24V DC470 x 41,5 x 65 [mm]Cable 5m PUR/PVC 408 EUR
11650MG-3-T2-IOL M8
GTIN / EAN: 4262388143731
24V DC470 x 41,5 x 65 [mm]Connector M8 408 EUR
11651MG-3-T4-IOL LC
GTIN / EAN: 4262388143564
24V DC470 x 41,5 x 65 [mm]Cable 5m PUR/PVC 426 EUR
11652MG-3-T4-IOL M8
GTIN / EAN: 4262388140068
24V DC470 x 41,5 x 65 [mm]Connector M8 426 EUR
