Mikro-HMI

Compact control and signal device

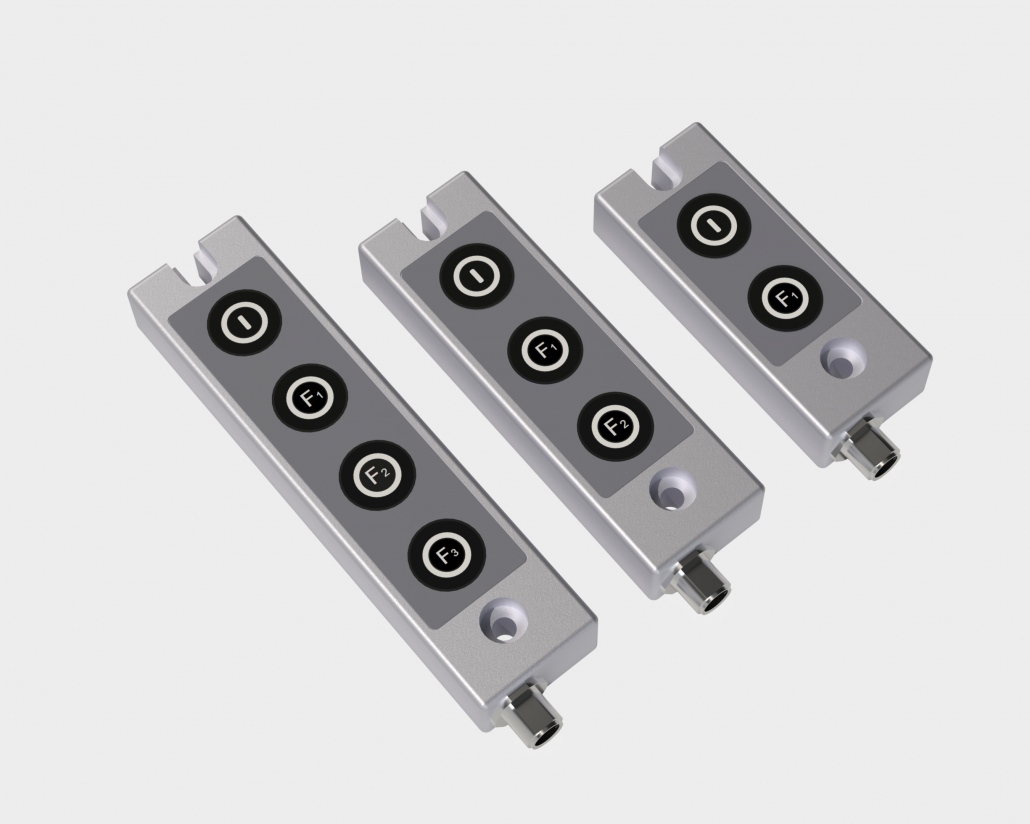

uHMIs are compact control and signal devices, designed to controll machines and systems in an industrial environment. Power contactors can be operated with the integrated semiconductor power drivers without a coupling relay. The buttons are debounced via software and have a minimum duty cycle of 200ms.

With a robust, powder-coated aluminum housing and fully encapsulated electronics, the control units are protected from environmental influences such as liquids and numerous chemicals such as alkalis, acids and oils. Of course, the polyester front foil also has a very high chemical resistance (DIN 42 115).

The connection to the supply voltage is made via a 5-pole PVC / PVC cable with a length of 3m and an open end.

Other front foil symbols can be offered on request.

Product Line

Variants of the product series


Item Num. Type Picture Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
11585 uHMI ON/OFF S1T1
GTIN / EAN: 4262388143540
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11586 uHMI ON/OFF S1S1
GTIN / EAN: 4262388147272
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11587 uHMI ON/FW S1T1
GTIN / EAN: 4262388147142
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11588 uHMI ON/FW T2
GTIN / EAN: 4262388147128
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11589 uHMI ON/M S1T1
GTIN / EAN: 4262388146985
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11590 uHMI ON/M T1
GTIN / EAN: 4262388146862
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11591 uHMI ON/L S1T1
GTIN / EAN: 4262388146848
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11592 uHMI ON/L S2
GTIN / EAN: 4262388146725
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
11593 uHMI ON/L T2
GTIN / EAN: 4262388146602
24V DC 105 x 30 x 8 [mm] Cable 3m PVC/PVC 108,00 EUR
