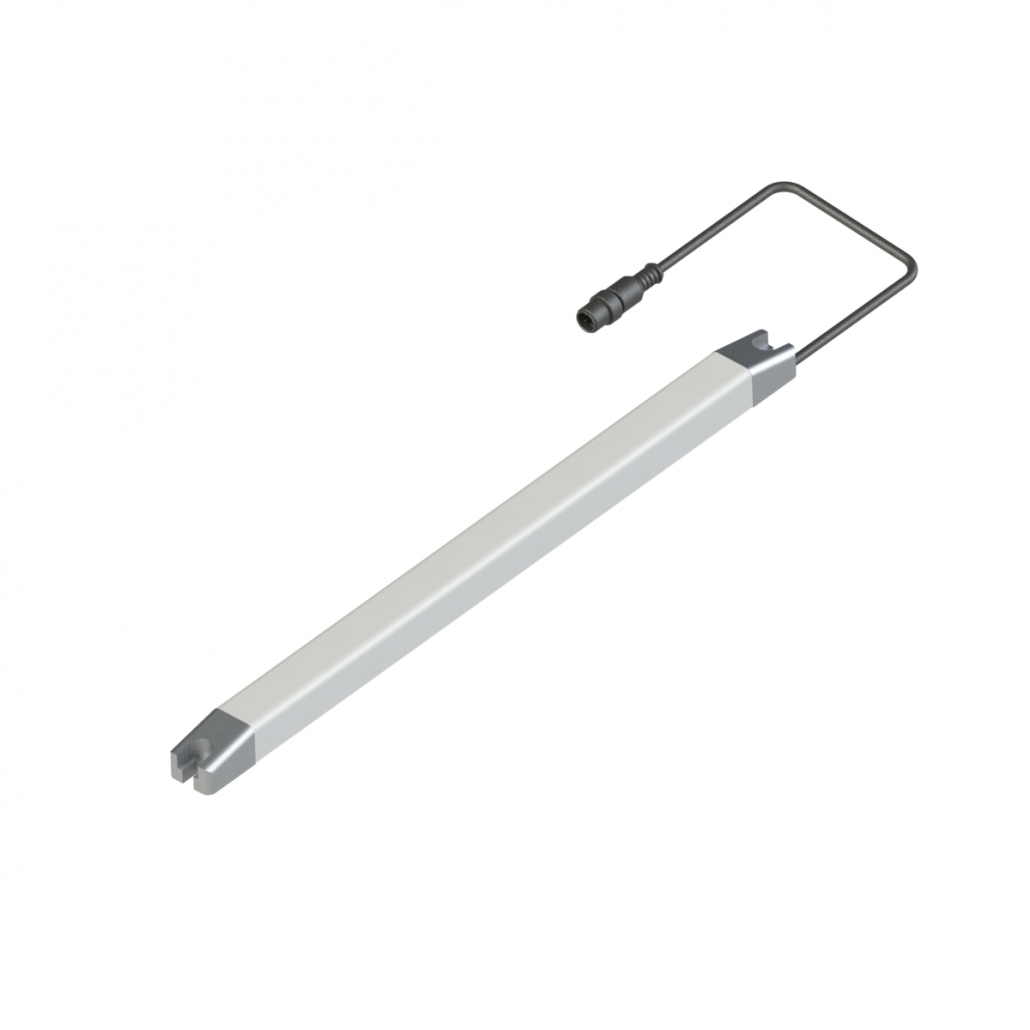

ML-x-UNI / ML-x-UNI-D

Universal LED machine lamps with high glare control

The ML-x-UNI machine light series was developed for a versatile and universal range of applications. A high level of glare suppression with a homogeneous lightemitting surface enable these lights to be fitted regardless of the installation length.

The diverse range of available lengths and connection options with a 3 m PVC / PVC cable or PUR / PVC cable with a 270 mm / M12 connector plug covers a wide range of requirements for your applications. The lights in the ML-x-UNI-D series can also be dimmed to 3 different levels via a switch.

Long and dimmable lights with a high level of glare suppression offer huge advantages especially for the visual inspection of surfaces.

Product Line

Product variants Accessories

Variants of the product series

Item Num.	Type	Picture	Power	Tension	Dimensions	Connection	Data sheet	CE Compliant	3D Data	Price (netto)	Inquiry
10948	ML-3-UNI LC GTIN / EAN: 4262388140006		3W	24V DC	180 x 24 x 20 [mm]	Cable 3m PVC/PVC				60,80 EUR
10949	ML-3-UNI M12 GTIN / EAN: 4262388140822		3W	24V DC	180 x 24 x 20 [mm]	M12 connector				60,80 EUR
10902	ML-6-UNI LC GTIN / EAN: 4262388140815		6W	24V DC	280 x 24 x 20 [mm]	Cable 3m PVC/PVC				78,30 EUR
10950	ML-6-UNI M12 GTIN / EAN: 4262388140839		6W	24V DC	280 x 24 x 20 [mm]	M12 Connector				78,30 EUR
10953	ML-9-UNI LC GTIN / EAN: 4262388140860		9W	24V DC	380 x 24 x 20 [mm]	Cable 3m PVC/PVC				91,70 EUR
10954	ML-9-UNI M12 GTIN / EAN: 4262388140877		9W	24V DC	380 x 24 x 20 [mm]	M12 Connector				91,70 EUR
10957	ML-12-UNI LC GTIN / EAN: 4262388140907		12W	24V DC	480 x 24 x 20 [mm]	Cable 3m PVC/PVC				110,20 EUR
10958	ML-12-UNI M12 GTIN / EAN: 4262388140914		12W	24V DC	480 x 24 x 20 [mm]	M12 Connector				110,20 EUR
10961	ML-15-UNI LC GTIN / EAN: 4262388140945		15W	24V DC	580 x 24 x 20 [mm]	Cable 3m PVC/PVC				124,60 EUR
10962	ML-15-UNI M12 GTIN / EAN: 4262388140952		15W	24V DC	580 x 24 x 20 [mm]	M12 Connector				124,60 EUR
10965	ML-18-UNI LC GTIN / EAN: 4262388140983		18W	24V DC	680 x 24 x 20 [mm]	Cable 3m PVC/PVC				142,00 EUR
10966	ML-18-UNI M12 GTIN / EAN: 4262388140990		18W	24V DC	680 x 24 x 20 [mm]	M12 Connector				142,00 EUR
10969	ML-21-UNI LC GTIN / EAN: 4262388141027		21W	24V DC	780 x 24 x 20 [mm]	Cable 3m PVC/PVC				156,60 EUR
10970	ML-21-UNI M12 GTIN / EAN: 4262388141034		21W	24V DC	780 x 24 x 20 [mm]	M12 Connector				156,60 EUR
10973	ML-27-UNI LC GTIN / EAN: 4262388141065		27W	24V DC	980 x 24 x 20 [mm]	Cable 3m PVC/PVC				186,40 EUR
10974	ML-27-UNI M12 GTIN / EAN: 4262388141072		27W	24V DC	980 x 24 x 20 [mm]	M12 Connector				186,40 EUR
10977	ML-36-UNI LC GTIN / EAN: 4262388141102		36W	24V DC	1280 x 24 x 20 [mm]	Cable 3m PVC/PVC				229,70 EUR
10978	ML-36-UNI M12 GTIN / EAN: 4262388141119		36W	24V DC	1280 x 24 x 20 [mm]	M12 Connector				229,70 EUR
10951	ML-6-UNI-D LC GTIN / EAN: 4262388140846		6W	24V DC	310 x 24 x 20 [mm]	Cable 3m PVC/PVC				110,00 EUR
10952	ML-6-UNI-D M12 GTIN / EAN: 4262388140853		6W	24V DC	310 x 24 x 20 [mm]	M12 Connector				110,00 EUR
10955	ML-9-UNI-D LC GTIN / EAN: 4262388140884		9W	24V DC	410 x 24 x 20 [mm]	Cable 3m PVC/PVC				121,50 EUR
10956	ML-9-UNI-D M12 GTIN / EAN: 4262388140891		9W	24V DC	410 x 24 x 20 [mm]	M12 Connector				121,50 EUR
10959	ML-12-UNI-D LC GTIN / EAN: 4262388140921		12W	24V DC	510 x 24 x 20 [mm]	Cable 3m PVC/PVC				140,00 EUR
10960	ML-12-UNI-D M12 GTIN / EAN: 4262388140938		12W	24V DC	510 x 24 x 20 [mm]	M12 Connector				140,00 EUR
10963	ML-15-UNI-D LC GTIN / EAN: 4262388140969		15W	24V DC	610 x 24 x 20 [mm]	Cable 3m PVC/PVC				153,50 EUR
10964	ML-15-UNI-D M12 GTIN / EAN: 4262388140976		15W	24V DC	610 x 24 x 20 [mm]	M12 Connector				153,50 EUR
10967	ML-18-UNI-D LC GTIN / EAN: 4262388141003		18W	24V DC	710 x 24 x 20 [mm]	Cable 3m PVC/PVC				168,90 EUR
10968	ML-18-UNI-D M12 GTIN / EAN: 4262388141010		18W	24V DC	710 x 24 x 20 [mm]	M12 Connector				168,90 EUR
10971	ML-21-UNI-D LC GTIN / EAN: 4262388141041		21W	24V DC	810 x 24 x 20 [mm]	Cable 3m PVC/PVC				185,40 EUR
10972	ML-21-UNI-D M12 GTIN / EAN: 4262388141058		21W	24V DC	810 x 24 x 20 [mm]	M12 Connector				185,40 EUR
10975	ML-27-UNI-D LC GTIN / EAN: 4262388141089		27W	24V DC	1010 x 24 x 20 [mm]	Cable 3m PVC/PVC				217,00 EUR
10976	ML-27-UNI-D M12 GTIN / EAN: 4262388141096		27W	24V DC	1010 x 24 x 20 [mm]	M12 Connector				217,00 EUR
10979	ML-36-UNI-D LC GTIN / EAN: 4262388141126		36W	24V DC	1310 x 24 x 20 [mm]	Cable 3m PVC/PVC				259,60 EUR
10980	ML-36-UNI-D M12 GTIN / EAN: 4262388141133		36W	24V DC	1310 x 24 x 20 [mm]	M12 Connector				259,60 EUR
(0) Make an inquiry for Selected products
