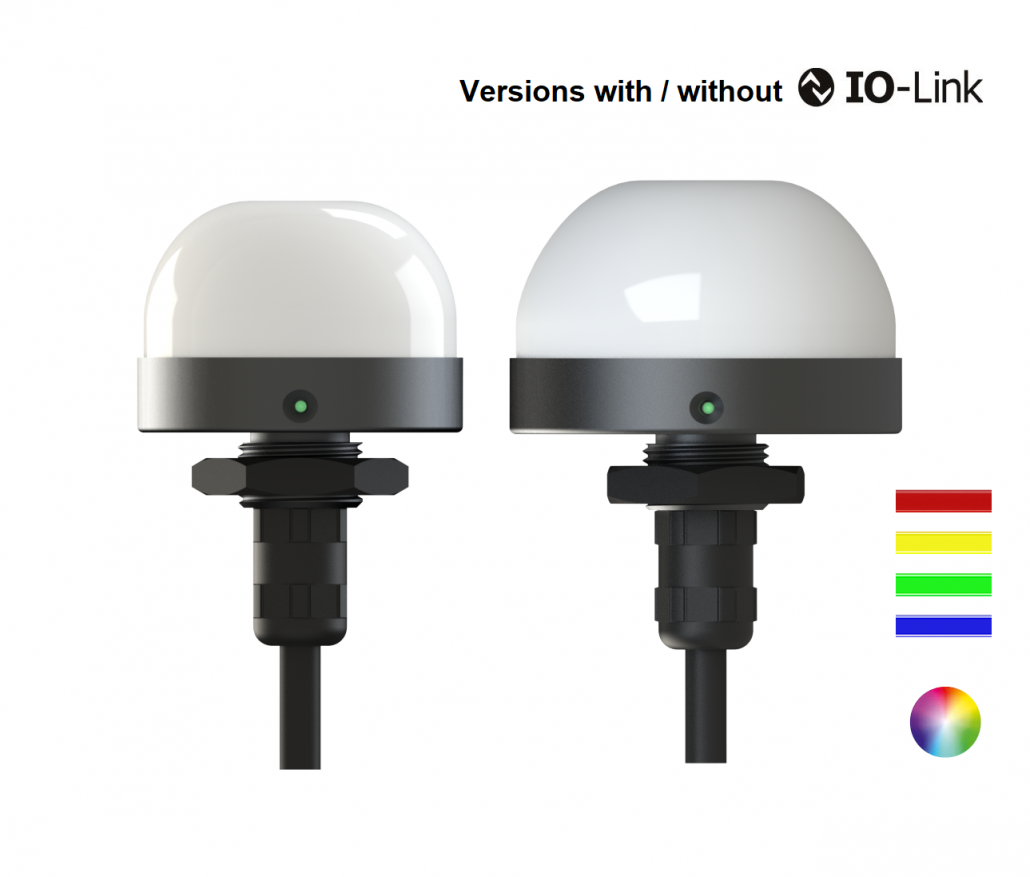

SL-x-TRIO RT / SL-x-TRIO RT IOLINK

LED signal light round, robust

Low overall height with simultaneous homogeneous display of 4 signal colors, as well as a robust and high-quality aluminum housing in two diameter sizes of 52 mm and 62 mm are unmistakable features of the signal lamp series SL-x-TRIO-RT.

Your application gains in individual design while maintaining technical standards in the industrial environment. The operating voltage of 24 V DC is supplied for each color via a 4-pole PVC / PVC cable with a length of 5 m or an M12 plug.

With the intelligent signal lights with IO-Link interface, you always know what the status of the signal device is. Conventional manual function tests (lamp tests) are no longer necessary.

In addition, you can parameterize these signal lights in a variety of colors (24-bit color depth) and signal function (flashing, flashing frequency, flash, etc.) via the IO-Link interface. The operating voltage of 24 V DC is supplied via a 3-pin PVC / PVC cable with a length of 3 m or an M12 connector.

The maximum ambient temperature is 50 ° C.

Product Line

Variants of the product series


Item Num. Type Picture Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
11339 SL-50-TRIO-RT
24V DC D52 x 40 [mm] Cable 5m PVC/PVC upon request
11340 SL-50-TRIO-RT M12
24V DC D52 x 40 [mm] M12 Connector upon request
11341 SL-60-TRIO-RT
24V DC D62 x 44 [mm] Cable 5m PVC/PVC upon request
11342 SL-60-TRIO-RT M12
24V DC D62 x 44 [mm] M12 Connector upon request
11371 SL-50-TRIO-RT IOLINK LC
24V DC D52 x 40 [mm] Cable 5m PVC/PVC
11372 SL-50-TRIO-RT IOLINK M12
24V DC D52 x 40 [mm] M12 Connector
11373 SL-60-TRIO-RT IOLINK LC
24V DC D62 x 44 [mm] Cable 5m PVC/PVC
11374 SL-60-TRIO-RT IOLINK M12
24V DC D62 x 44 [mm] M12 Connector
