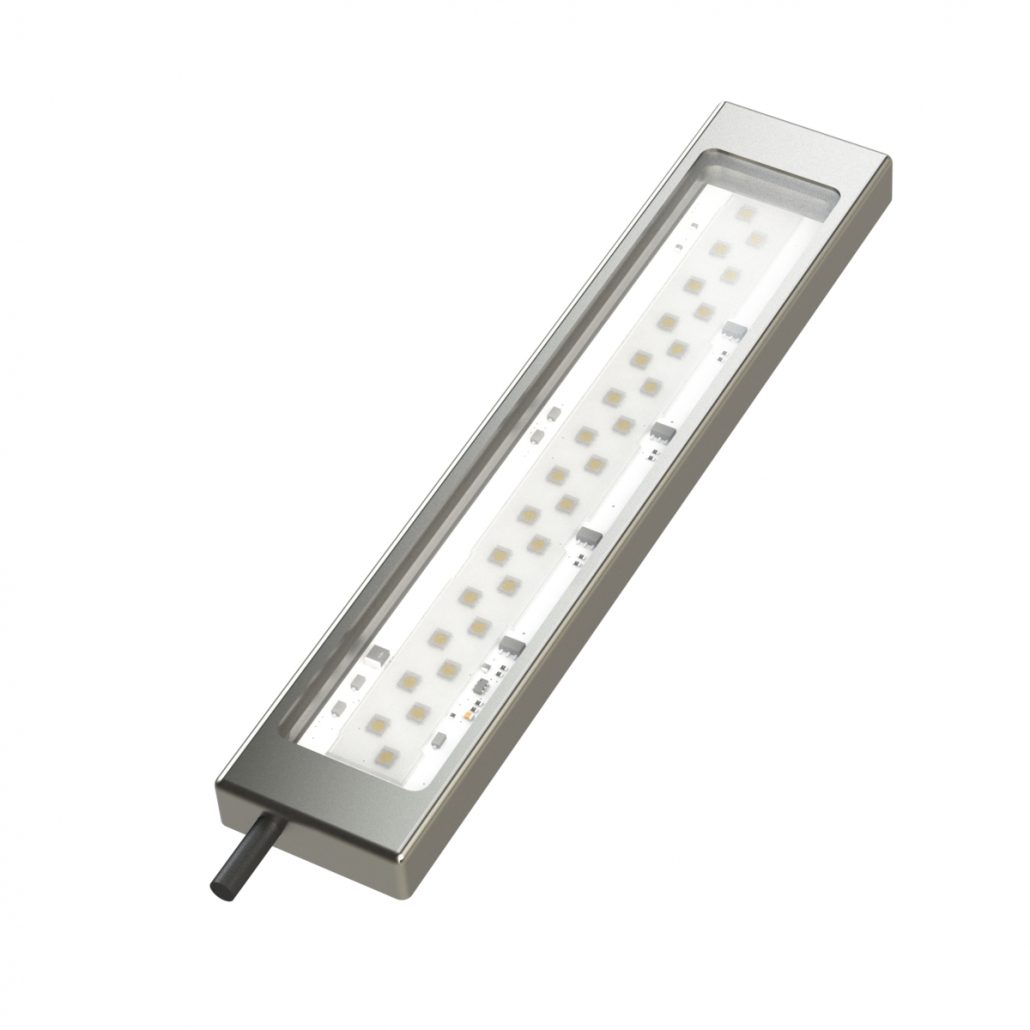

Stainless steel machine lights

ML-x-UFE

LED stainless steel lights with high color fastness CRI >90, cast for high protection classes IP67 / IP68, optional glass front, rear thread, robust, flat and vibration-proof V2A housing.

The stainless steel machine series is suitable for production manufacture foodstuffs and other industry sectors with very high hygienic requirements.

The rear installation of the lights means that the easy-to-clean front section does not contain any drilled holes and seams on which residues could accumulate.

With a UV resistant and crystal clear polyurethane casting, the LED stainless steel machine light from the environment and numerous chemicals such as alkalis, acids and oils, is protected.

The highly efficient LED produce a wide beam angle of 100° and a flicker-free light in the usual daylight quality.

The stainless-steel lights ML-6-UFE, ML-6-UFE20M, ML-12-UFE and ML-12-UFE20M are UL-certified

24VDC
offenes Kabelende
Schutzklasse 3
Kennzeichen D
Schutzart IP67
Schutzart IP68
Farbtemperatur 5700K
Farbwiedergabeindex 90
EPREL E
Approval UL
Approval CE
Product Line
UL-Zertifikat
Pricelist

Variations of the product series ML-x-UFE

Item Num. Type Picture Power Tension Dimensions Connection Data sheet 3D Data Inquiry
10637 ML-6-UFE
GTIN / EAN: 4262388140747
6W 24V DC 200 x 40 x 12 [mm] Cable 3m PVC/PVC
11478 ML-6-UFE20M
GTIN / EAN: 4262388141423
6W 24V DC 200 x 40 x 12 [mm] Cable 20m PVC/PVC
10872 ML-6-UFGE
GTIN / EAN: 4262388140792
6W 24V DC 200 x 40 x 12 [mm] Cable 3m PVC/PVC
11689 ML-6-UFGE20M
GTIN / EAN: 4262388143205
6W 24V DC 200 x 40 x 12 [mm] Cable 20m PVC/PVC
11155 ML-6-UFER
GTIN / EAN: 4262388141386
6W 24V DC 210 x 40 x 12 [mm] Cable 3m PVC/PVC
11156 ML-6-UFGER
GTIN / EAN: 4262388141393
6W 24V DC 210 x 40 x 12 [mm] Cable 3m PVC/PVC
10286 ML-12-UFE
GTIN / EAN: 4262388140532
12W 24V DC 370 x 40 x 12 [mm] Cable 3m PVC/PVC
10807 ML-12-UFE20M
GTIN / EAN: 4262388140785
12W 24V DC 370 x 40 x 12 [mm] Cable 20m PUR/PVC
10577 ML-12-UFGE
GTIN / EAN: 4262388140679
12W 24V DC 370 x 40 x 12 [mm] Cable 3m PVC/PVC
11157 ML-12-UFER
GTIN / EAN: 4262388141409
12W 24V DC 380 x 40 x 12 [mm] Cable 3m PVC/PVC
11158 ML-12-UFGER
GTIN / EAN: 4262388141416
12W 24V DC 380 x 40 x 12 [mm] Cable 3m PVC/PVC
