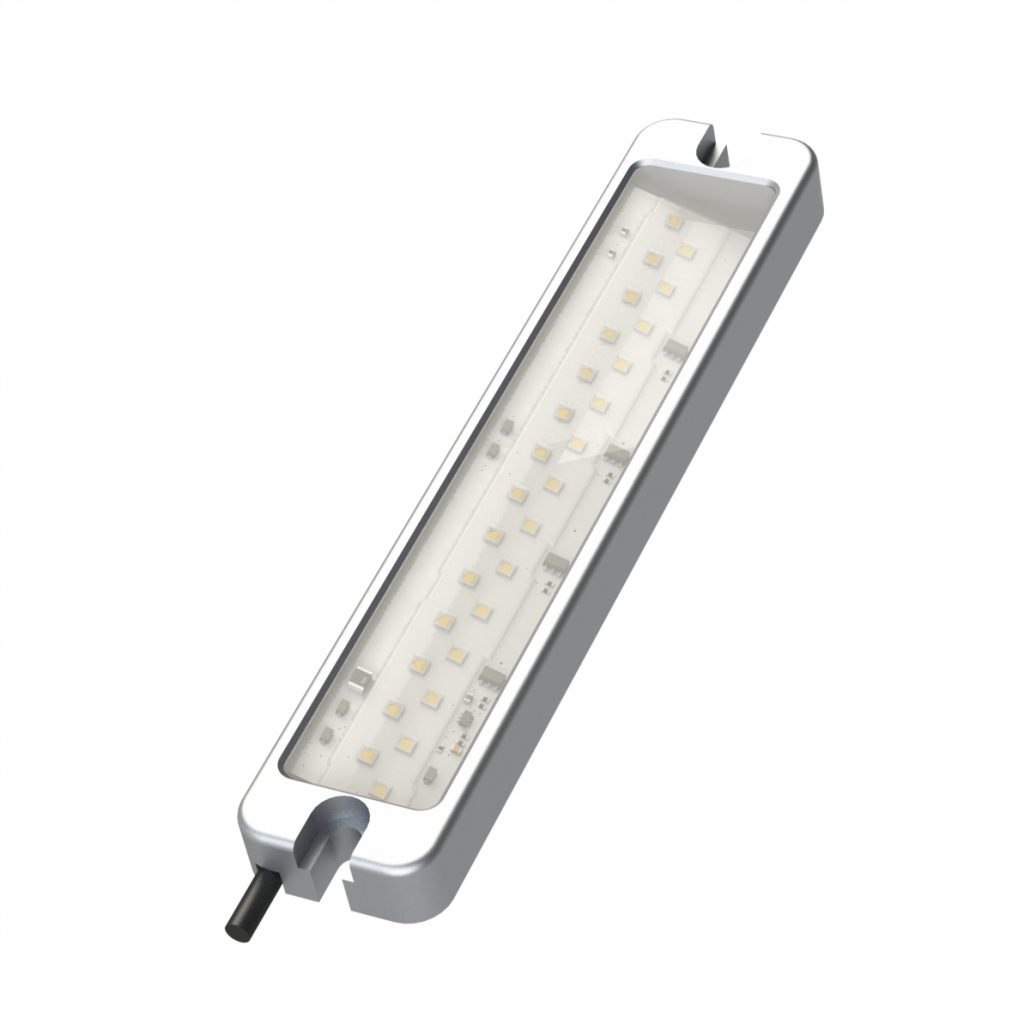

ML-x-20

LED machine lights, IP68, integrated dimming angle 20 °

The machine light allows for compact dimensions easy mechanical integration into machines without significantly restricting the space available. A simple electrical installation will be carried over directly to 24 V DC M12 Connector systems. LC types have a 5 m PUR / PVC cable with open end.

With a robust aluminum housing and a weatherproof, UV resistant and crystal clear polyurethane casting, the LED light from the environment and numerous chemicals such as alkalis, acids and oils, is protected.

The highly efficient LEDs have a beam angle of 100° and roduce a homogeneous, flicker-free light.

The ML-Series are available in 5 sizes. This lights are providing space-saving mounting for top or for example door mounting.

The series ML-x-20 have an integrated dim out angle to dip the light in top position.

Product Line

Variations of the product series ML-x-20


Item Num.TypePicturePowerTensionDimensionsConnectionData sheetCE Compliant3D DataPrice (netto)Inquiry
10221ML-6-20 M12
GTIN / EAN: 4262388140136
6W24V DC200 x 40 x 15 [mm]M12 Connector 113,40 EUR
10262ML-6-20 LC
GTIN / EAN: 4262388140358
6W24V DC200 x 40 x 15 [mm]Cable 5m PUR/PVC 113,40 EUR
10219ML-12-20 M12
GTIN / EAN: 4262388140112
12W24V DC370 x 40 x 15 [mm]M12 Connector 188,00 EUR
10226ML-12-20 LC
GTIN / EAN: 4262388140143
12W24V DC370 x 40 x 15 [mm]Cable 5m PUR/PVC 188,00 EUR
10220ML-18-20 M12
GTIN / EAN: 4262388140129
18W24V DC540 x 40 x 15 [mm]M12 Connector 255,20 EUR
10260ML-18-20 LC
GTIN / EAN: 4262388140334
18W24V DC540 x 40 x 15 [mm]Cable 5m PUR/PVC 256,20 EUR
10251ML-24-20 M12
GTIN / EAN: 4262388140303
24W24V DC540 x 40 x 15 [mm]M12 Connector 285,60 EUR
10261ML-24-20 LC
GTIN / EAN: 4262388140341
24W24V DC540 x 40 x 15 [mm]Cable 5m PUR/PVC 284,60 EUR
10294ML-36-20 M12
GTIN / EAN: 4262388140563
36W24V DC800 x 40 x 15 [mm]M12 Connector 343,40 EUR
10639ML-36-20 LC
GTIN / EAN: 4262388140754
36W24V DC800 x 40 x 15 [mm]Cable 5m PUR/PVC 344,40 EUR
