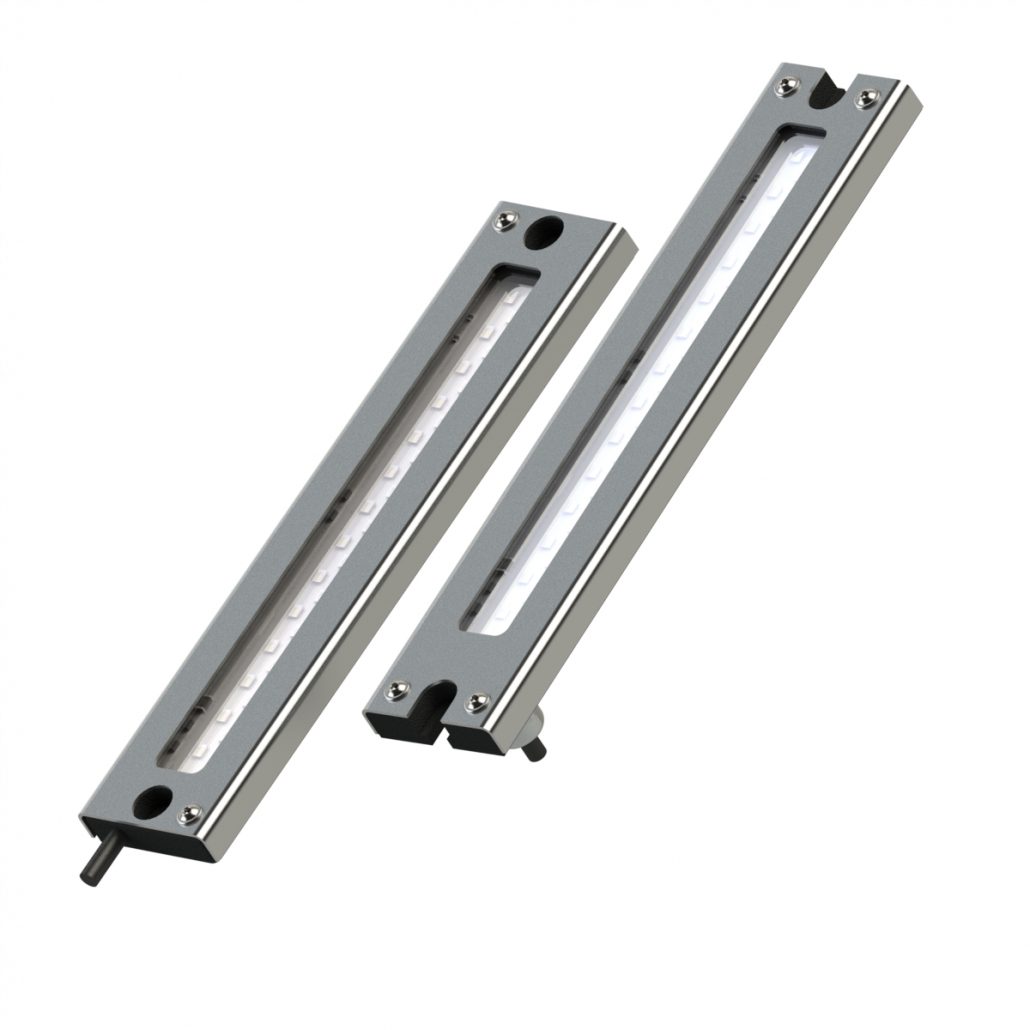

WML-x-UF/WML-x-UFR

LED machine tool lamps, IP68 / IP69K, flat design

The machine tool series WML-x-UF / WML-x-UFR allow for compact dimensions an easy mechanical integration in machines and machine tools without significantly restricting the space available. The robust aluminum housing with stainless steel protection plate and a thermally hardened glass look protects the LED light from numerous chemicals such as alkalis, acids and oils as well as chips in machine tools.

The lights are filled with a crystal-clear PUR casting, which prevents the ingress of oils or other liquids, completely potted. The high-efficiency LEDs have a beam angle of 110 ° and produce a homogeneous, flicker-free light.

The WML-x-UF / WML-x-UFR series are available in 5 performance classes. Connection is via M12 plug connection or with 5 m PUR / PVC cable with open end (LC version). These luminaires are well-suited to the extremely flat design for space-saving installation in corners and doors.

The WML-x-UFR series are equipped with a rear cable outlet.

Product Line

Variants of the product series


Item Num. Type Picture Power Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
10296 WML-6-UF
6W 24V DC 200 x 42,3 x 11 [mm] M12 Connector 138 EUR
10300 WML-6-UF LC
6W 24V DC 200 x 42,3 x 11 [mm] Cable 5m PUR/PVC 138 EUR
11179 WML-6-UFR
6W 24V DC 210 x 42,3 x 11 [mm] M12 Connector upon request
11180 WML-6-UFR LC
6W 24V DC 210 x 42,3 x 11 [mm] Cable 5m PUR/PVC upon request
10287 WML-12-UF
12W 24V DC 370 x 42,3 x 11 [mm] M12 Connector 188 EUR
10299 WML-12-UF LC
12W 24V DC 370 x 42,3 x 11 [mm] Cable 5m PUR/PVC 188 EUR
11181 WML-12-UFR
12W 24V DC 380 x 42,3 x 11 [mm] M12 Connector upon request
11182 WML-12-UFR LC
12W 24V DC 380 x 42,3 x 11 [mm] Cable 5m PUR/PVC upon request
10283 WML-18-UF
18W 24V DC 540 x 42,3 x 11 [mm] M12 Connector 248 EUR
10288 WML-18-UF LC
18W 24V DC 540 x 42,3 x 11 [mm] Cable 5m PUR/PVC 248 EUR
11183 WML-18-UFR
18W 24V DC 580 x 42,3 x 11 [mm] M12 Connector upon request
11184 WML-18-UFR LC
18W 24V DC 580 x 42,3 x 11 [mm] Cable 5m PUR/PVC upon request
10284 WML-24-UF
24W 24V DC 540 x 42,3 x 11 [mm] M12 Connector 274 EUR
10289 WML-24-UF LC
24W 24V DC 540 x 42,3 x 11 [mm] Cable 5m PUR/PVC 274 EUR
11185 WML-24-UFR
24W 24V DC 580 x 42,3 x 11 [mm] M12 Connector upon request
11186 WML-24-UFR LC
24W 24V DC 580 x 42,3 x 11 [mm] Cable 5m PUR/PVC upon request
10295 WML-36-UF
36W 24V DC 800 x 42,3 x 11 [mm] M12 Connector 355 EUR
10301 WML-36-UF LC
36W 24V DC 800 x 42,3 x 11 [mm] Cable 5m PUR/PVC 355 EUR
11187 WML-36-UFR
36W 24V DC 810 x 42,3 x 11 [mm] M12 Connector upon request
11188 WML-36-UFR LC
36W 24V DC 810 x 42,3 x 11 [mm] Cable 5m PUR/PVC upon request
