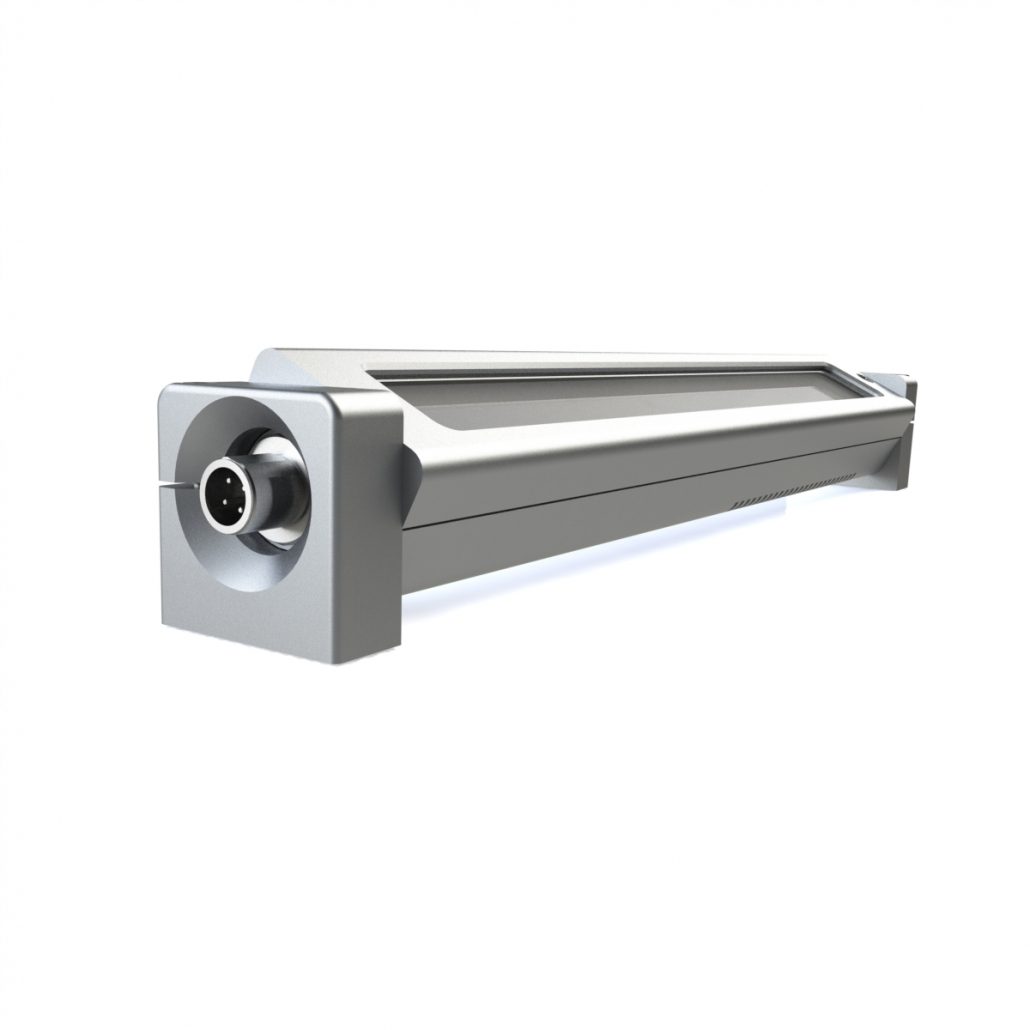

ML-x-P/WML-x-P

LED machine lights, rotatable, fine prismatic glare control

The ML-x-P / WML-x-P machine luminaires allow for a compact mechanical dimensioning in machines without restricting the space available. A simple electrical installation directly to 24 V DC is realized via M12 connector systems.

With a rotatable, robust aluminum housing and impact-resistant polycarbonate (ML-x-P) or thermally-tempered safety glass (WML-x-P), the LED light is protected against mechanical environmental influences and numerous chemicals such as alkalis, acids and oils.

The highly efficient LEDs – in combination with the fine prismatic glare – produce a wide beam angle of approx. 100 ° and generate a flicker-free light. The ML-x-P and WML-x-P series are available in four performance classes. The WML-x-P series is designed for the machine tool industry and features front-side stainless steel protection and a thermally tempered safety glass pane optic.

Product Line

Variants of the product series


Item Num. Type Picture Power Tension Dimensions Connection Data sheet CE Compliant 3D Data Price (netto) Inquiry
10598 ML-7-P
GTIN / EAN: 4262388140693
7W 24V DC 190 x 40 x 40 [mm] M12 Connector 167,30 EUR
10599 ML-14-P
GTIN / EAN: 4262388140709
14W 24V DC 300 x 40 x 40 [mm] M12 Connector 194,80 EUR
10600 ML-28-P
GTIN / EAN: 4262388140716
28W 24V DC 520 x 40 x 40 [mm] M12 Connector 291,70 EUR
10601 ML-56-P
GTIN / EAN: 4262388140723
56W 24V DC 970 x 40 x 40 [mm] M12 Connector 403,90 EUR
10640 WML-7-P
GTIN / EAN: 4262388141843
7W 24V DC 190 x 40 x 40 [mm] M12 Connector 180,70 EUR
10641 WML-14-P
GTIN / EAN: 4262388141850
14W 24V DC 300 x 40 x 40 [mm] M12 Connector 219,60 EUR
10642 WML-28-P
GTIN / EAN: 4262388141867
28W 24V DC 520 x 40 x 40 [mm] M12 Connector 353,00 EUR
10643 WML-56-P
GTIN / EAN: 4262388141874
56W 24V DC 970 x 40 x 40 [mm] M12 Connector 451,80 EUR
